हम मुख्य रूप से मशीन विजन प्रौद्योगिकी ऊष्मायन, प्रोटोटाइप और उत्पाद विकास के तीन क्षेत्रों पर ध्यान केंद्रित करते हैं। हम उत्पाद की गुणवत्ता, प्रदर्शन, परिचालन सुरक्षा और विश्वसनीयता बढ़ाने के लिए मशीन दृष्टि के माध्यम से कारखाने के स्वचालन में भारतीय उद्योगों की सहायता करते हैं।
केन्द्र प्रमुख | |||
तस्वीर | नाम | पदनाम | प्रोफाइल |
---|---|---|---|
![]() |
श्री शानमुगराज वी. | वैज्ञानिक - एफ | प्रोफ़ाइल देखें |
ग्रुप प्रमुख | |||
तस्वीर | नाम | पदनाम | प्रोफाइल |
---|---|---|---|
Sorry, No Staff are Matched Your Criteria. |
वैज्ञानिक | |||
तस्वीर | नाम | पदनाम | प्रोफाइल |
---|---|---|---|
![]() |
श्रीमती दीपा आर | वैज्ञानिक - सी | प्रोफ़ाइल देखें |
![]() |
श्री विनोद वेंकटेश गुमास्ते | वैज्ञानिक - सी | प्रोफ़ाइल देखें |
तकनीकी स्टाफ | |||
तस्वीर | नाम | पदनाम | फोन (कार्यालय) |
---|---|---|---|
![]() |
श्रीमती कविता वी | तक. सहा. ग्रेड ।। | 080-22188216/211 |
प्रशासन | |||
तस्वीर | नाम | पदनाम | फोन (कार्यालय) |
---|---|---|---|
Sorry, No Staff are Matched Your Criteria. |
- डिजिटल फ्रिंज प्रोजेक्शन (डीएफपी) और लेजर स्कैनिंग प्रौद्योगिकियों पर आधारित 3 डी स्कैनर्स का विकास।
- सतही निरीक्षण प्रणालियों का विकास।
- सटीक 2 डी माप प्रणालियों का विकास।
Development of 3D Scanning Technologies by Digital Fringe Projection and Laser Scanning technologies
CMTI has experience in developing 3D scanners working on Digital Fringe Projection (DFP) and laser scanning technologies.

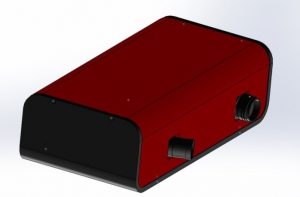

AAKAAR-2M3D is a 3D Scanner based on Digital Fringe Projection developed by CMTI.
It is capable of scanning wide range of components made from metals, plastics and ceramics etc with high precision. When compared to a CMM, this measurement system is easy to use and captures 3D profile of the component at a very high resolution i.e., more than a million points in less than 4 seconds with an accuracy of ±150µm in single view. Salient features of AAKAAR-2M3D are that it can perform actual and nominal comparison with CAD data, it is portable as it can be mounted on a tripod/robot, it has flexible configuration with adjustable optics and it can perform automated registration using rotary table and markers.

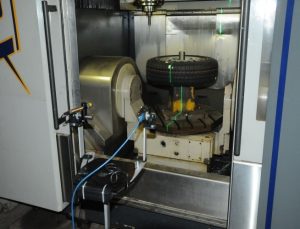

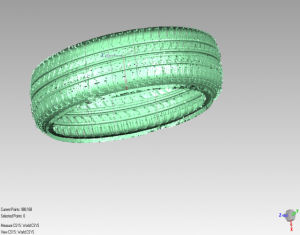

Laser Scanning is another technology which is useful of scanning of dark and shiny surfaces. The system consists of a camera and a laser projector which projects a thin luminous straight line onto the surface of the object that is to be reconstructed. This projected line is imaged using the camera. To reconstruct the whole surface of the object, the object must be moved relative to the measurement system. The 3D point cloud data that is collected can be compared with its CAD data to report the deviations or a 2D section can be extracted to perform measurements. The laser scanning technology has been used to scan the surface of a four wheeler tyre.

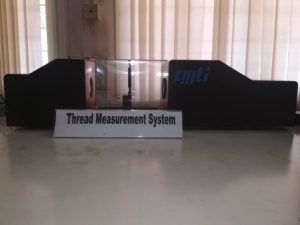

Thread measurement system

- Non-contact and improved method of external thread form parameter measurement to check for dimensional tolerances.
- High speed thread parameter measurement system which can be used for automating the thread measurement process in the thread manufacturing lines.
- User friendly thread measurement system requiring minimum human intervention.
- Records measurement results for statistical analysis.
Fluted Roller Vision Inspection system for defects.

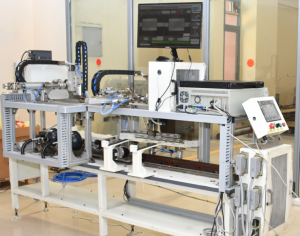

- The system is a vision based inspection system designed to inspect the fluted roller, used in textile machinery, for presence of chip-out and damages at before plating stage.
- The fluted roller vision inspection system consists of two sets of inspection units each unit consisting of a machine vision camera, optics and light sources.
- There are 8 variants in this component with variations in roller length, roller diameter, flute length and flute pitch.
- Various challenges like presence of oil on surface of the sample, reflective surface and variations in sizes and appearance are addressed in this project.
- The software has features like auto inspection cycle, manual inspection cycle, excel reporting feature, summary analysis report, model type detection, wrong loading detection in addition to the defect inspection feature.
Optical Tool Setter for USUPTM
- Optical tool setter is an accessory developed for performing the initial tool setting operation in the ultra precision turning machine, developed by CMTI. The system significantly reduce the tool setting time and also simplifies the process by providing accurate measurements of the tool tip offset and the tool nose radius.
Automated inspection of surgical screw.
- The system is a non-contact inspection solution using machine vision for Surgical Screws or Bone Screws. The inspection involves critical dimensional measurement with very high accuracy for various parameters to be inspected with different sizes and types of screws.
Automated inspection of drippers.
- The system is a non-contact system for inspection of drippers. Drippers are used in irrigation system. Different types of defects like hole blockage, flash on root and collar, cut on collar, short moulding and circularity of the drippers are inspected in this system.

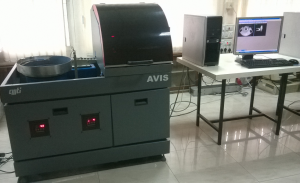

Automated inspection of retaining bush.
- “Retaining bush” is a safety critical automotive plastic injection mould component.
- Able to identify all types of defects encountered in the component an inspection stations with 2 cameras
- Inspection rate of 3 components / sec
- Inspection also includes key dimensional measurements
- Automated Component feeding using a vibratory feeder.

- दृश्यमान और इन्फ्रारेड क्षेत्रों में अत्यधिक सटीक माप, उच्च गति निरीक्षण और दोष पहचान को पूरा करने के लिए कैमरों की रेंज।
- विभिन्न रंगों और चिंतनशीलता के घटकों को पूरा करने के लिए विभिन्न प्रकार के लाइटिंग।
- उच्च परिशुद्धता प्रकाशिकी जैसे टेलेंट्रिक, उच्च रिज़ॉल्यूशन और हाई स्पीड लेंस
- नैनो पोजिशनिंग स्टेज के साथ ब्राइटफील्ड माइक्रोस्कोप
- स्वचालन समाधान और छवि प्रसंस्करण के लिए सॉफ्टवेयर उपकरण।
पेटेंट: विज़न मेजरमेंट का उपयोग करके मशीनों में थर्मल त्रुटि क्षतिपूर्ति के लिए प्रणाली और विधि।
कॉपीराइट:
- थ्रेड मेजरमेंट सिस्टम टीएमएस-030
- ऑप्टिकल उपकरण सेट स्टेशन – ओपीटीओएसएस
पुरस्कार:
सत्र "डायमेंशनल मेजरमेंट एंड मशीन विजन" के तहत मेट्रोलॉजी एडमिट -2014 में एडवांस पर 4 वें राष्ट्रीय सम्मेलन में "टू व्हीलर इंजन क्रैंकशाफ्ट के लिए ऑटोमेटेड विजन इंस्पेक्शन सिस्टम का विकास" शीर्षक से "बेस्ट पेपर" पुरस्कार मिला।
प्रकाशन:
- आर. दीपा, वी. कविता, आईओटी सक्षम पार्ट क्वालिटी चेक द विज़न का उपयोग करना’, इंटरनेशनल जर्नल ऑफ़ इमेजिंग एंड रोबोटिक्स (आईएसएसएन 2231-525एक्स), 2020, खंड 20, अंक संख्या 1, पृष्ठ 44-52।
- आर. दीपा. आर. मधुसूदन राव, एस. उषा, जे. प्रद्युम्न (2019), 'डिजिटल फ्रिंज प्रोजेक्शन द्वारा 3 डी स्कैनिंग सिस्टम का विकास', इंटरनेशनल जर्नल ऑफ इमेजिंग एंड रोबोटिक्स, 2019, वॉल्यूम 19, अंक संख्या 1, पीपी 117-130
- मधुसूदन राव आर, दीपा राधाकृष्ण, उषा एस (2018), 3डी एक रोबोट-माउंटेड 3डी स्कैनर का विकास और औद्योगिक अनुप्रयोगों के लिए मल्टी-व्यू पंजीकरण तकनीक, प्रोसीडिया कंप्यूटर साइंस, वॉल्यूम 133, 2018, पीपी 256-267।
- मधुसूदन राव आर, दीपा आर, कविता वी, उषा एस (2014), ए फास्ट, विश्वसनीय फ्रिंज प्रोजेक्शन प्रोफाइल सिस्टम', मैन्युफैक्चरिंग टेक्नोलॉजी टुडे, खंड 15, अंक 1, पीपी। 3-11
- आर. दीपा, जे. प्रद्युम्न, एस. हर्ष, एस.उषा (2015), 'टू व्हीलर इंजन क्रैंकशाफ्ट के लिए ऑटोमेटेड विजन इंस्पेक्शन सिस्टम का विकास', मापान, जर्नल ऑफ मेट्रोलॉजी सोसायटी ऑफ इंडिया, दिसंबर 2015, वॉल्यूम 30, अंक 4, पीपी 273-280।
- आर दीपा, एस उषा, पी वी शशि कुमार (2014),, प्लास्टिक इंजेक्शन मोल्ड घटक के लिए स्वचालित दृष्टि निरीक्षण प्रणाली ’, उन्नत सामग्री विनिर्माण और विशेषता, मार्च 2014, खंड 4, अंक 1, पीपी 26-31
- आर दीपा, एस उषा, पी बाबिन, इंटरनेशनल मशीन विज़न का उपयोग करके बाहरी थ्रेड मापन के लिए अभिनव एल्गोरिथम ’, सटीक, मेसो, माइक्रो और नैनो इंजीनियरिंग पर अंतर्राष्ट्रीय सम्मेलन - कोपेन 2011
- एस. उषा, आर.दीपा, पी.वी. शशिकुमार, डॉ. जी.सी. मोहनकुमार, नैनो स्केल डायमेंशनल एनालिसिस के लिए फोकस इमेजिंग तकनीक के माध्यम से सटीक, मेसो, माइक्रो और नैनो इंजीनियरिंग पर अंतर्राष्ट्रीय सम्मेलन - कोपेन 2011
- आर दीपा, एस उषा, पी वी शशि कुमार, प्लास्टिक इंजेक्शन मोल्ड घटक के लिए स्वचालित दृष्टि निरीक्षण प्रणाली, अखिल भारतीय विनिर्माण प्रौद्योगिकी डिजाइन और अनुसंधान सम्मेलन - एआईएमटीडीआर 2014
- एस. हर्षा, आर दीपा, वी कविता, एस उषा, विजन आधारित सर्जिकल स्क्रू निरीक्षण, एडवांस इन मेट्रोलॉजी - एडीएमईटी 2015
- आर. दीपा, जे. प्रद्युम्न, एस. हर्षा, एस. उषा, टू व्हीलर इंजन क्रैंकशाफ्ट के लिए स्वचालित दृष्टि निरीक्षण प्रणाली का विकास, एडवांसमेंट इन मेट्रोलॉजी - एडीएमईटी 2015.
